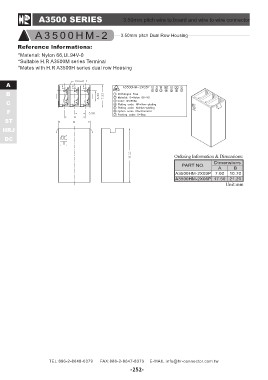

A3500 SERIES         3.50mm pitch wire to board and wire to wire connector

     A3500HM-2            3.50mm pitch Dual Row Housing

     Reference lnformations:

     *Material: Nylon 66,UL94V-0
     *Suitable H.R A3500M series Terminal
     *Mates with H.R A3500H series dual row Housing

  A
  B
  C
  F
 ST
HRJ
 DC

                                                     Ordering Information & Dimensions:

                                                     PART NO.  Dimensions
                                                                 AB

                                                     A3500HM-2X03P 7.00 10.70

                                                     A3500HM-2X06P 17.50 21.20

                                                                               Unit:mm
