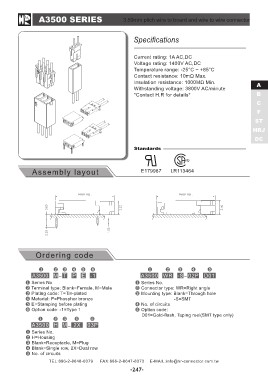

A3500 SERIES 3.50mm pitch wire to board and wire to wire connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 1400V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 3800V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987 ®

LR113464

Ordering code

A3500 M - T P E -1 A3500 WR -S - 02P D01

Series No. Series No.
Terminal type: Blank=Female, M=Male Connector type: WR=Right angle
Plating code: T=Tin-plated Mounting type: Blank=Through hole
Material: P=Phosphor bronze
E=Stamping before plating -S=SMT
Option code: -1=Type 1 No. of circuits
Option code:
D01=Gold-flash, Taping reel(SMT type only)

A3500 H M - 2X 03P

Series No.
H=Housing
Blank=Receptacle, M=Plug
Blank=Single row, 2X=Dual row
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-247-
