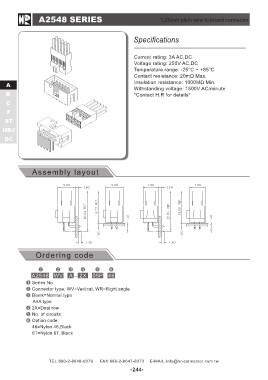

A2548 SERIES 1.25mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*

Ordering code

A2548 WV A - 2X 05P 46

Series No.
Connector type: WV=Vertical, WR=Right angle
Blank=Normal type
A=A type
2X=Dual row
No. of circuits
Option code:
46=Nylon 46,Black
6T=Nylon 6T, Black

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
