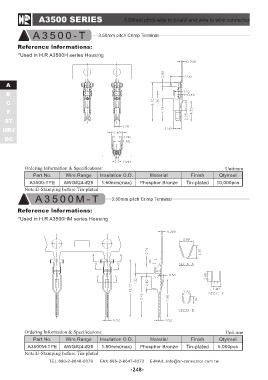

A3500 SERIES 3.50mm pitch wire to board and wire to wire connector

A3500-T 3.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A3500H series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
Tin-plated 10,000pcs
A3500-TPE AWG#24-#28 1.60mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A3500M-T 3.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A3500HM series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Phosphor Bronze Tin-plated
A3500M-TPE AWG#24-#28 1.80mm(max)
Note:E-Stamping before Tin-plated
