P. 262

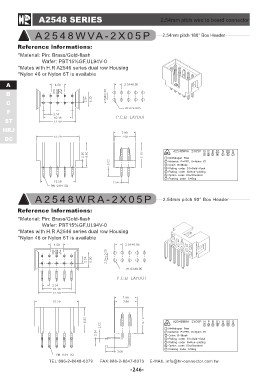

A2548 SERIES 2.54mm pitch wire to board connector
A 20 58 40 80 WH IV A - 2 X 0 5 P 2.54mm pitch 180° Box Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT15%GF,UL94V-0
*Mates with H.R A2546 series dual row Housing
*Nylon 46 or Nylon 6T is available
A
B
C
F
ST
HRJ
DC
A 20 58 40 80 WH IR A - 2 X 0 5 P 2.54mm pitch 90° Box Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT15%GF,UL94V-0
*Mates with H.R A2546 series dual row Housing
*Nylon 46 or Nylon 6T is available
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-246-
