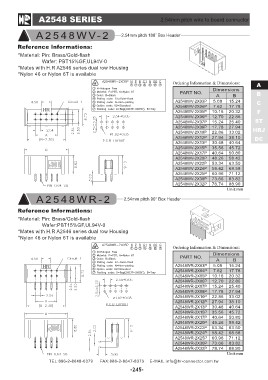

A2548 SERIES 2.54mm pitch wire to board connector
A 02 85 04 08 HWIV - 2 2.54mm pitch 180˚ Box Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT15%GF,UL94V-0
*Mates with H.R A2546 series dual row Housing
*Nylon 46 or Nylon 6T is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
A2548WV-2X03P AB ST
A2548WV-2X04P HRJ
A2548WV-2X05P 5.08 15.24 DC
A2548WV-2X06P 7.62 17.78
A2548WV-2X07P 10.16 20.32
A2548WV-2X08P 12.70 22.86
A2548WV-2X10P 15.24 25.40
A2548WV-2X12P 17.78 27.94
A2548WV-2X13P 22.86 33.02
A2548WV-2X15P 27.94 38.10
A2548WV-2X17P 30.48 40.64
A2548WV-2X20P 35.56 45.72
A2548WV-2X22P 40.64 50.80
A2548WV-2X24P 48.26 58.42
A2548WV-2X25P 53.34 63.50
A2548WV-2X30P 58.42 68.58
A2548WV-2X32P 60.96 71.12
73.66 83.82
78.74 88.90
Unit:mm
AA02850408HWIR - 2 2.54mm pitch 90° Box Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer:PBT15%GF,UL94V-0
*Mates with H.R A2546 series dual row Housing
*Nylon 46 or Nylon 6T is available
Ordering Information & Dimensions:
PART NO. Dimensions
A2548WR-2X03P AB
A2548WR-2X04P
A2548WR-2X05P 5.08 15.24
A2548WR-2X06P 7.62 17.78
A2548WR-2X07P 10.16 20.32
A2548WR-2X08P 12.70 22.86
A2548WR-2X10P 15.24 25.40
A2548WR-2X12P 17.78 27.94
A2548WR-2X13P 22.86 33.02
A2548WR-2X15P 27.94 38.10
A2548WR-2X17P 30.48 40.64
A2548WR-2X20P 35.56 45.72
A2548WR-2X22P 40.64 50.80
A2548WR-2X24P 48.26 58.42
A2548WR-2X25P 53.34 63.50
A2548WR-2X30P 58.42 68.58
A2548WR-2X32P 60.96 71.12
73.66 83.82
78.74 88.90
Unit:mm
