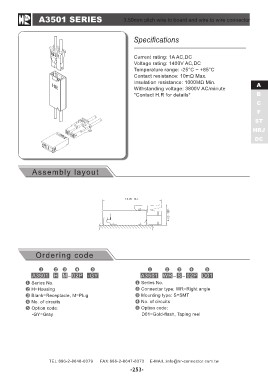

A3501 SERIES              3.50mm pitch wire to board and wire to wire connector

                          Specifications

                          Current rating: 1A AC,DC                                 A
                          Voltage rating: 1400V AC,DC                              B
                          Temperature range: -25°C ~ +85°C                         C
                          Contact resistance: 10mΩ Max.                            F
                          Insulation resistance: 1000MΩ Min.                      ST
                          Withstanding voltage: 3800V AC/minute                  HRJ
                          *Contact H.R for details*                               DC

Assembly layout

 Ordering code            A3501 WR - S - 02P D01

A3501 H M - 02P -GY       Series No.
                          Connector type: WR=Right angle
Series No.                Mounting type: S=SMT
H=Housing                 No. of circuits
Blank=Receptacle, M=Plug  Option code:
No. of circuits           D01=Gold-flash, Taping reel
Option code:
-GY=Gray

TEL:886-2-8648-0379       FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
