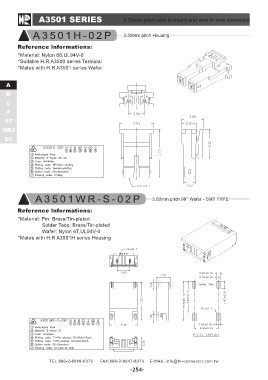

A3501 SERIES                  3.50mm pitch wire to board and wire to wire connector

         A3501H-02P                       3.50mm pitch Housing

     Reference lnformations:
     *Material: Nylon 66,UL94V-0
     *Suitable H.R A3500 series Terminal
     *Mates with H.R A3501 series Wafer

  A
  B
  C
  F
 ST
HRJ
 DC

          A3501WR-S-02P                           3.50mm pitch 90° Wafer - SMT TYPE

     Reference lnformations:

     *Material: Pin: Brass/Tin-plated
                   Solder Tabs: Brass/Tin-plated
                   Wafer: Nylon 6T,UL94V-0

     *Mates with H.R A3501H series Housing

     TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
