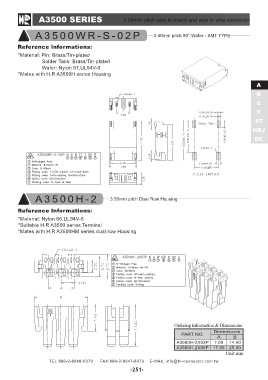

A3500 SERIES 3.50mm pitch wire to board and wire to wire connector

A3500WR-S-02P 3.50mm pitch 90° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A3500H series Housing

A
B
C
F
ST
HRJ
DC

A3500H-2 3.50mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A3500 series Terminal
*Mates with H.R A3500HM series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A3500H-2X03P 7.00 14.50

A3500H-2X06P 17.50 25.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-251-
