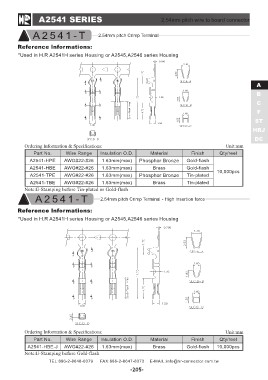

A2541 SERIES 2.54mm pitch wire to board connector

A2541-T 2.54mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2541H series Housing or A2545,A2546 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
10,000pcs
A2541-HPE AWG#22-#26 1.63mm(max) Phosphor Bronze Gold-flash

A2541-HBE AWG#22-#26 1.63mm(max) Brass Gold-flash

A2541-TPE AWG#22-#26 1.63mm(max) Phosphor Bronze Tin-plated

A2541-TBE AWG#22-#26 1.63mm(max) Brass Tin-plated

Note:E-Stamping before Tin-plated or Gold-flash

A2541-T 2.54mm pitch Crimp Terminal - High Insertion force

Reference lnformations:
*Used in H.R A2541H series Housing or A2545,A2546 series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Gold-flash
A2541-HBE-J AWG#22-#26 1.63mm(max)

Note:E-Stamping before Gold-flash
