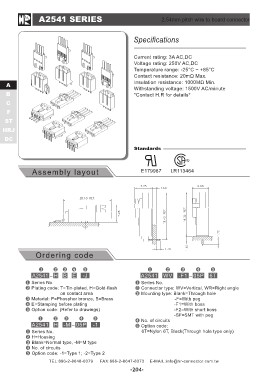

A2541 SERIES 2.54mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code

A2541 - H B E -J A2541 WV -F1 - 05P 6T

Series No. Series No.
Plating code: T=Tin-plated, H=Gold-flash Connector type: WV=Vertical, WR=Right angle
Mounting type: Blank=Through hole
on contact area
Material: P=Phosphor bronze, B=Brass -F=With peg
E=Stamping before plating -F1=With boss
Option code: (Refer to drawings) -F2=With short boss
-SF=SMT with peg
A2541 H -M - 05P -1 No. of circuits
Option code:
Series No. 6T=Nylon 6T, Black(Through hole type only)
H=Housing
Blank=Normal type, -M=M type
No. of circuits
Option code: -1=Type 1; -2=Type 2

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-204-
