P. 219

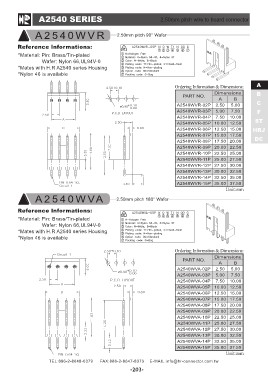

A0285040 SERIES 2.50mm pitch wire to board connector
A 02 58 04 0 HWIV R 2.50mm pitch 90° Wafer
Reference lnformations: Ordering Information & Dimensions: A
*Material: Pin: Brass/Tin-plated B
PART NO. Dimensions C
Wafer: Nylon 66,UL94V-0 AB F
*Mates with H.R A2540 series Housing ST
*Nylon 46 is available A2540WVR-02P 2.50 5.00 HRJ
DC
A 02 58 40 0 WH IV A A2540WVR-03P 5.00 7.50
Reference lnformations: A2540WVR-04P 7.50 10.00
*Material: Pin: Brass/Tin-plated
A2540WVR-05P 10.00 12.50
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2540 series Housing A2540WVR-06P 12.50 15.00
*Nylon 46 is available
A2540WVR-07P 15.00 17.50
A2540WVR-08P 17.50 20.00
A2540WVR-09P 20.00 22.50
A2540WVR-10P 22.50 25.00
A2540WVR-11P 25.00 27.50
A2540WVR-12P 27.50 30.00
A2540WVR-13P 30.00 32.50
A2540WVR-14P 32.50 35.00
A2540WVR-15P 35.00 37.50
Unit:mm
2.50mm pitch 180° Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2540WVA-02P 2.50 5.00
A2540WVA-03P 5.00 7.50
A2540WVA-04P 7.50 10.00
A2540WVA-05P 10.00 12.50
A2540WVA-06P 12.50 15.00
A2540WVA-07P 15.00 17.50
A2540WVA-08P 17.50 20.00
A2540WVA-09P 20.00 22.50
A2540WVA-10P 22.50 25.00
A2540WVA-11P 25.00 27.50
A2540WVA-12P 27.50 30.00
A2540WVA-13P 30.00 32.50
A2540WVA-14P 32.50 35.00
A2540WVA-15P 35.00 37.50
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
