P. 218

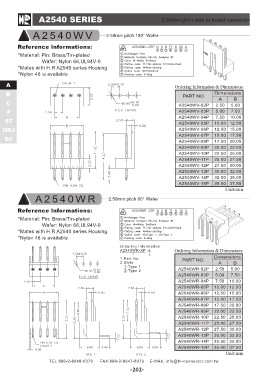

A2540 SERIES 2.50mm pitch wire to board connector
AA20584000WH IV 2.50mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2540 series Housing
*Nylon 46 is available
A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A2540WV-02P 2.50 5.00
DC
A2540WV-03P 5.00 7.50
A2540WV-04P 7.50 10.00
A2540WV-05P 10.00 12.50
A2540WV-06P 12.50 15.00
A2540WV-07P 15.00 17.50
A2540WV-08P 17.50 20.00
A2540WV-09P 20.00 22.50
A2540WV-10P 22.50 25.00
A2540WV-11P 25.00 27.50
A2540WV-12P 27.50 30.00
A2540WV-13P 30.00 32.50
A2540WV-14P 32.50 35.00
A2540WV-15P 35.00 37.50
Unit:mm
A2540WR 2.50mm pitch 90° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2540 series Housing
*Nylon 46 is available
Ordering Information: Ordering Information & Dimensions:
A2540WR-XP ＊
PART NO. Dimensions
12 AB
1.Part No. A2540WR-02P 2.50 5.00
2.Style:
1-Type 1
2-Type 2
A2540WR-03P 5.00 7.50
A2540WR-04P 7.50 10.00
A2540WR-05P 10.00 12.50
A2540WR-06P 12.50 15.00
A2540WR-07P 15.00 17.50
A2540WR-08P 17.50 20.00
A2540WR-09P 20.00 22.50
A2540WR-10P 22.50 25.00
A2540WR-11P 25.00 27.50
A2540WR-12P 27.50 30.00
A2540WR-13P 30.00 32.50
A2540WR-14P 32.50 35.00
A2540WR-15P 35.00 37.50
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-202-
