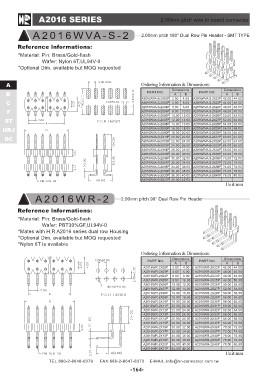

A2016 SERIES
AA20081060WH IV A - S - 2
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Optional Dim. available but MOQ requested
A Ordering Information & Dimensions:
B
C PART NO.
F AB
ST
HRJ
DC
A2016WR-2 2.00mm pitch 90° Dual Row Pin Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0
*Mates with H.R A2016 series dual row Housing
*Optional Dim. available but MOQ requested
*Nylon 6T is available
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-164-
2.00mm pitch wire to board connector
2.00mm pitch 180° Dual Row Pin Header - SMT TYPE
Dimensions PART NO. Dimensions
AB
A2016WVA-S-2X02P 2.00 4.00 A2016WVA-S-2X22P 42.00 44.00
A2016WVA-S-2X03P 4.00 6.00 A2016WVA-S-2X23P 44.00 46.00
A2016WVA-S-2X04P 6.00 8.00 A2016WVA-S-2X24P 46.00 48.00
A2016WVA-S-2X05P 8.00 10.00 A2016WVA-S-2X25P 48.00 50.00
A2016WVA-S-2X06P 10.00 12.00 A2016WVA-S-2X26P 50.00 52.00
A2016WVA-S-2X07P 12.00 14.00 A2016WVA-S-2X27P 52.00 54.00
A2016WVA-S-2X08P 14.00 16.00 A2016WVA-S-2X28P 54.00 56.00
A2016WVA-S-2X09P 16.00 18.00 A2016WVA-S-2X29P 56.00 58.00
A2016WVA-S-2X10P 18.00 20.00 A2016WVA-S-2X30P 58.00 60.00
A2016WVA-S-2X11P 20.00 22.00 A2016WVA-S-2X31P 60.00 62.00
A2016WVA-S-2X12P 22.00 24.00 A2016WVA-S-2X32P 62.00 64.00
A2016WVA-S-2X13P 24.00 26.00 A2016WVA-S-2X33P 64.00 66.00
A2016WVA-S-2X14P 26.00 28.00 A2016WVA-S-2X34P 66.00 68.00
A2016WVA-S-2X15P 28.00 30.00 A2016WVA-S-2X35P 68.00 70.00
A2016WVA-S-2X16P 30.00 32.00 A2016WVA-S-2X36P 70.00 72.00
A2016WVA-S-2X17P 32.00 34.00 A2016WVA-S-2X37P 72.00 74.00
A2016WVA-S-2X18P 34.00 36.00 A2016WVA-S-2X38P 74.00 76.00
A2016WVA-S-2X19P 36.00 38.00 A2016WVA-S-2X39P 76.00 78.00
A2016WVA-S-2X20P 38.00 40.00 A2016WVA-S-2X40P 78.00 80.00
A2016WVA-S-2X21P 40.00 42.00
Unit:mm
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
AB AB
A2016WR-2X02P A2016WR-2X22P
A2016WR-2X03P 2.00 4.00 A2016WR-2X23P 42.00 44.00
A2016WR-2X04P 4.00 6.00 A2016WR-2X24P 44.00 46.00
A2016WR-2X05P 6.00 8.00 A2016WR-2X25P 46.00 48.00
A2016WR-2X06P 8.00 10.00 A2016WR-2X26P 48.00 50.00
A2016WR-2X07P 10.00 12.00 A2016WR-2X27P 50.00 52.00
A2016WR-2X08P 12.00 14.00 A2016WR-2X28P 52.00 54.00
A2016WR-2X09P 14.00 16.00 A2016WR-2X29P 54.00 56.00
A2016WR-2X10P 16.00 18.00 A2016WR-2X30P 56.00 58.00
A2016WR-2X11P 18.00 20.00 A2016WR-2X31P 58.00 60.00
A2016WR-2X12P 20.00 22.00 A2016WR-2X32P 60.00 62.00
A2016WR-2X13P 22.00 24.00 A2016WR-2X33P 62.00 64.00
A2016WR-2X14P 24.00 26.00 A2016WR-2X34P 64.00 66.00
A2016WR-2X15P 26.00 28.00 A2016WR-2X35P 66.00 68.00
A2016WR-2X16P 28.00 30.00 A2016WR-2X36P 68.00 70.00
A2016WR-2X17P 30.00 32.00 A2016WR-2X37P 70.00 72.00
A2016WR-2X18P 32.00 34.00 A2016WR-2X38P 72.00 74.00
A2016WR-2X19P 34.00 36.00 A2016WR-2X39P 74.00 76.00
A2016WR-2X20P 36.00 38.00 A2016WR-2X40P 76.00 78.00
A2016WR-2X21P 38.00 40.00 78.00 80.00
40.00 42.00
Unit:mm
