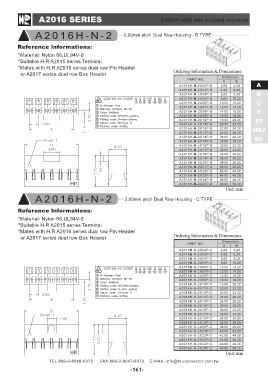

Page 177 - JOINT TECH

A2016 SERIES 2.00mm pitch wire to board connector

A 2 0 1 6 H - N - 2 2.00mm pitch Dual Row Housing - B TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0 Ordering Information & Dimensions:
*Suitable H.R A2015 series Terminal
*Mates with H.R A2016 series dual row Pin Header Dimensions
or A2017 series dual row Box Header AB
2.00 4.20
PART NO. 4.00 6.20 A
6.00 8.20 B
A2016H-N-2X02P-B 8.00 10.20 C
A2016H-N-2X03P-B 10.00 12.20 F
A2016H-N-2X04P-B 12.00 14.20 ST
A2016H-N-2X05P-B 14.00 16.20 HRJ
A2016H-N-2X06P-B 16.00 18.20 DC
A2016H-N-2X07P-B 18.00 20.20
A2016H-N-2X08P-B 20.00 22.20
A2016H-N-2X09P-B 22.00 24.20
A2016H-N-2X10P-B 24.00 26.20
A 2 0 1 6 H - N - 2 X 11 P - B 26.00 28.20
A2016H-N-2X12P-B 28.00 30.20
A2016H-N-2X13P-B 30.00 32.20
A2016H-N-2X14P-B 32.00 34.20
A2016H-N-2X15P-B 34.00 36.20
A2016H-N-2X16P-B 36.00 38.20
A2016H-N-2X17P-B 38.00 40.20
A2016H-N-2X18P-B 40.00 42.20
A2016H-N-2X19P-B 42.00 44.20
A2016H-N-2X20P-B 44.00 46.20
A2016H-N-2X21P-B 46.00 48.20
A2016H-N-2X22P-B 48.00 50.20
A2016H-N-2X23P-B
A2016H-N-2X24P-B Unit:mm
A2016H-N-2X25P-B

A2016H-N-2 2.00mm pitch Dual Row Housing - C TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-0 Dimensions
*Suitable H.R A2015 series Terminal AB
*Mates with H.R A2016 series dual row Pin Header 2.00 4.20
or A2017 series dual row Box Header 4.00 6.20
6.00 8.20
PART NO. 8.00 10.20
10.00 12.20
A2016H-N-2X02P-C 12.00 14.20
A2016H-N-2X03P-C 14.00 16.20
A2016H-N-2X04P-C 16.00 18.20
A2016H-N-2X05P-C 18.00 20.20
A2016H-N-2X06P-C 20.00 22.20
A2016H-N-2X07P-C 22.00 24.20
A2016H-N-2X08P-C 24.00 26.20
A2016H-N-2X09P-C 26.00 28.20
A2016H-N-2X10P-C 28.00 30.20
A 2 0 1 6 H - N - 2 X 11 P - C 30.00 32.20
A2016H-N-2X12P-C 32.00 34.20
A2016H-N-2X13P-C 34.00 36.20
A2016H-N-2X14P-C 36.00 38.20
A2016H-N-2X15P-C 38.00 40.20
A2016H-N-2X16P-C 40.00 42.20
A2016H-N-2X17P-C 42.00 44.20
A2016H-N-2X18P-C 44.00 46.20
A2016H-N-2X19P-C 46.00 48.20
A2016H-N-2X20P-C 48.00 50.20
A2016H-N-2X21P-C
A2016H-N-2X22P-C Unit:mm
A2016H-N-2X23P-C
A2016H-N-2X24P-C
A2016H-N-2X25P-C

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-161-
