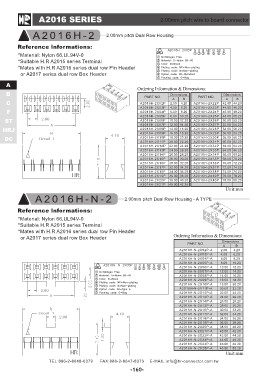

A2016 SERIES 2.00mm pitch wire to board connector

A 2 0 1 6 H - 2 2.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2015 series Terminal
*Mates with H.R A2016 series dual row Pin Header
or A2017 series dual row Box Header

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F AB AB
ST A2016H-2X02P A2016H-2X22P
HRJ A2016H-2X03P 2.00 4.20 A2016H-2X23P 42.00 44.20
DC A2016H-2X04P 4.00 6.20 A2016H-2X24P 44.00 46.20
A2016H-2X05P 6.00 8.20 A2016H-2X25P 46.00 48.20
A2016H-2X06P 8.00 10.20 A2016H-2X26P 48.00 50.20
A2016H-2X07P 10.00 12.20 A2016H-2X27P 50.00 52.20
A2016H-2X08P 12.00 14.20 A2016H-2X28P 52.00 54.20
A2016H-2X09P 14.00 16.20 A2016H-2X29P 54.00 56.20
A2016H-2X10P 16.00 18.20 A2016H-2X30P 56.00 58.20
A 2 0 1 6 H - 2 X 11 P 18.00 20.20 A2016H-2X31P 58.00 60.20
A2016H-2X12P 20.00 22.20 A2016H-2X32P 60.00 62.20
A2016H-2X13P 22.00 24.20 A2016H-2X33P 62.00 64.20
A2016H-2X14P 24.00 26.20 A2016H-2X34P 64.00 66.20
A2016H-2X15P 26.00 28.20 A2016H-2X35P 66.00 68.20
A2016H-2X16P 28.00 30.20 A2016H-2X36P 68.00 70.20
A2016H-2X17P 30.00 32.20 A2016H-2X37P 70.00 72.20
A2016H-2X18P 32.00 34.20 A2016H-2X38P 72.00 74.20
A2016H-2X19P 34.00 36.20 A2016H-2X39P 74.00 76.20
A2016H-2X20P 36.00 38.20 A2016H-2X40P 76.00 78.20
A2016H-2X21P 38.00 40.20 78.00 80.20
40.00 42.20
Unit:mm

A2016H-N-2 2.00mm pitch Dual Row Housing - A TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-0 Dimensions
*Suitable H.R A2015 series Terminal AB
*Mates with H.R A2016 series dual row Pin Header 2.00 4.20
or A2017 series dual row Box Header 4.00 6.20
6.00 8.20
PART NO. 8.00 10.20
10.00 12.20
A2016H-N-2X02P-A 12.00 14.20
A2016H-N-2X03P-A 14.00 16.20
A2016H-N-2X04P-A 16.00 18.20
A2016H-N-2X05P-A 18.00 20.20
A2016H-N-2X06P-A 20.00 22.20
A2016H-N-2X07P-A 22.00 24.20
A2016H-N-2X08P-A 24.00 26.20
A2016H-N-2X09P-A 26.00 28.20
A2016H-N-2X10P-A 28.00 30.20
A 2 0 1 6 H - N - 2 X 11 P - A 30.00 32.20
A2016H-N-2X12P-A 32.00 34.20
A2016H-N-2X13P-A 34.00 36.20
A2016H-N-2X14P-A 36.00 38.20
A2016H-N-2X15P-A 38.00 40.20
A2016H-N-2X16P-A 40.00 42.20
A2016H-N-2X17P-A 42.00 44.20
A2016H-N-2X18P-A 44.00 46.20
A2016H-N-2X19P-A 46.00 48.20
A2016H-N-2X20P-A 48.00 50.20
A2016H-N-2X21P-A
A2016H-N-2X22P-A Unit:mm
A2016H-N-2X23P-A
A2016H-N-2X24P-A
A2016H-N-2X25P-A
