P. 175

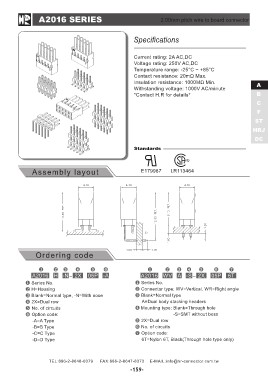

A2016 SERIES                   2.00mm pitch wire to board connector
Assembly layout
                                 Specifications

                                 Current rating: 2A AC,DC                       A
                                 Voltage rating: 250V AC,DC                     B
                                 Temperature range: -25°C ~ +85°C               C
                                 Contact resistance: 20mΩ Max.                  F
                                 Insulation resistance: 1000MΩ Min.            ST
                                 Withstanding voltage: 1000V AC/minute        HRJ
                                 *Contact H.R for details*                     DC

                                 Standards

                                 E179987               ®

                                            LR113464

 Ordering code                   A2016 WV A -S - 2X 05P 6T

A2016 H -N - 2X 05P -A           Series No.
                                 Connector type: WV=Vertical, WR=Right angle
Series No.                       Blank=Normal type
H=Housing                        A=Dual body stacking headers
Blank=Normal type, -N=With nose  Mounting type: Blank=Through hole
2X=Dual row
No. of circuits                                       -S=SMT without boss
Option code:                     2X=Dual row
-A=A Type                        No. of circuits
-B=B Type                        Option code:
-C=C Type                        6T=Nylon 6T, Black(Through hole type only)
-D=D Type

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
