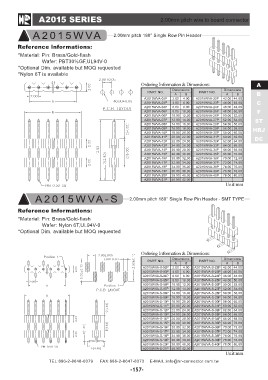

Page 173 - JOINT TECH

A2015 SERIES
A 2 0 1 5 W VA 2.00mm pitch 180° Single Row Pin Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0
*Optional Dim. available but MOQ requested
*Nylon 6T is available
A 2 0 1 5 W VA - S
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Optional Dim. available but MOQ requested
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-157-
2.00mm pitch wire to board connector
Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
A2015WVA-02P A2015WVA-22P ST
A2015WVA-03P 2.00 4.00 A2015WVA-23P 42.00 44.00 HRJ
A2015WVA-04P 4.00 6.00 A2015WVA-24P 44.00 46.00 DC
A2015WVA-05P 6.00 8.00 A2015WVA-25P 46.00 48.00
A2015WVA-06P 8.00 10.00 A2015WVA-26P 48.00 50.00
A2015WVA-07P 10.00 12.00 A2015WVA-27P 50.00 52.00
A2015WVA-08P 12.00 14.00 A2015WVA-28P 52.00 54.00
A2015WVA-09P 14.00 16.00 A2015WVA-29P 54.00 56.00
A2015WVA-10P 16.00 18.00 A2015WVA-30P 56.00 58.00
A2015WVA-11P 18.00 20.00 A2015WVA-31P 58.00 60.00
A2015WVA-12P 20.00 22.00 A2015WVA-32P 60.00 62.00
A2015WVA-13P 22.00 24.00 A2015WVA-33P 62.00 64.00
A2015WVA-14P 24.00 26.00 A2015WVA-34P 64.00 66.00
A2015WVA-15P 26.00 28.00 A2015WVA-35P 66.00 68.00
A2015WVA-16P 28.00 30.00 A2015WVA-36P 68.00 70.00
A2015WVA-17P 30.00 32.00 A2015WVA-37P 70.00 72.00
A2015WVA-18P 32.00 34.00 A2015WVA-38P 72.00 74.00
A2015WVA-19P 34.00 36.00 A2015WVA-39P 74.00 76.00
A2015WVA-20P 36.00 38.00 A2015WVA-40P 76.00 78.00
A2015WVA-21P 38.00 40.00 78.00 80.00
40.00 42.00
Unit:mm
2.00mm pitch 180° Single Row Pin Header - SMT TYPE
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
AB AB
A2015WVA-S-02P
A2015WVA-S-03P 2.00 4.00 A2015WVA-S-22P 42.00 44.00
A2015WVA-S-04P 4.00 6.00
A2015WVA-S-05P 6.00 8.00 A2015WVA-S-23P 44.00 46.00
A2015WVA-S-06P 8.00 10.00
A2015WVA-S-07P 10.00 12.00 A2015WVA-S-24P 46.00 48.00
A2015WVA-S-08P 12.00 14.00
A2015WVA-S-09P 14.00 16.00 A2015WVA-S-25P 48.00 50.00
A2015WVA-S-10P 16.00 18.00
A2015WVA-S-11P 18.00 20.00 A2015WVA-S-26P 50.00 52.00
A2015WVA-S-12P 20.00 22.00
A2015WVA-S-13P 22.00 24.00 A2015WVA-S-27P 52.00 54.00
A2015WVA-S-14P 24.00 26.00
A2015WVA-S-15P 26.00 28.00 A2015WVA-S-28P 54.00 56.00
A2015WVA-S-16P 28.00 30.00
A2015WVA-S-17P 30.00 32.00 A2015WVA-S-29P 56.00 58.00
A2015WVA-S-18P 32.00 34.00
A2015WVA-S-19P 34.00 36.00 A2015WVA-S-30P 58.00 60.00
A2015WVA-S-20P 36.00 38.00
A2015WVA-S-21P 38.00 40.00 A2015WVA-S-31P 60.00 62.00
40.00 42.00
A2015WVA-S-32P 62.00 64.00
A2015WVA-S-33P 64.00 66.00
A2015WVA-S-34P 66.00 68.00
A2015WVA-S-35P 68.00 70.00
A2015WVA-S-36P 70.00 72.00
A2015WVA-S-37P 72.00 74.00
A2015WVA-S-38P 74.00 76.00
A2015WVA-S-39P 76.00 78.00
A2015WVA-S-40P 78.00 80.00
Unit:mm
