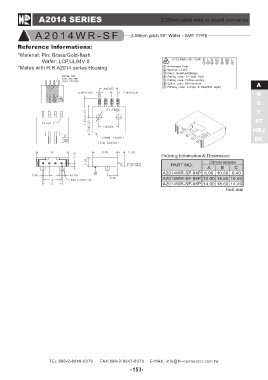

A2014 SERIES 2.00mm pitch wire to board connector
A2014WR-SF 2.00mm pitch 90° Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: LCP,UL94V-0
*Mates with H.R A2014 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A2014WR-SF-04P 6.00 10.60 6.40
A2014WR-SF-06P 10.00 14.60 10.40
A2014WR-SF-08P 14.00 18.60 14.40
Unit:mm
