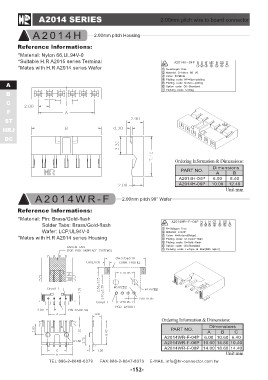

A2014 SERIES 2.00mm pitch wire to board connector

A2014H 2.00mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2015 series Terminal
*Mates with H.R A2014 series Wafer

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
AB
A2014H-04P
A2014H-06P 6.00 8.40
10.00 12.40

Unit:mm

A2014WR-F 2.00mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Solder Tabs: Brass/Gold-flash
Wafer: LCP,UL94V-0

*Mates with H.R A2014 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC
A2014WR-F-04P 6.00 10.60 6.40
A2014WR-F-06P
A2014WR-F-08P 10.00 14.60 10.40

14.00 18.60 14.40

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-152-
