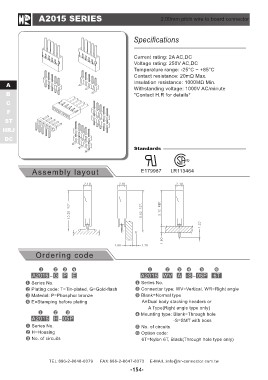

A2015 SERIES 2.00mm pitch wire to board connector

A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1000V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code A2015 WV A -S - 05P 6T

A2015 - G P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. Blank=Normal type
Plating code: T=Tin-plated, G=Gold-flash A=Dual body stacking headers or
Material: P=Phosphor bronze
E=Stamping before plating A Type(Right angle type only)
Mounting type: Blank=Through hole
A2015 H - 05P
-S=SMT with boss
Series No. No. of circuits
H=Housing Option code:
No. of circuits 6T=Nylon 6T, Black(Through hole type only)

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-154-
