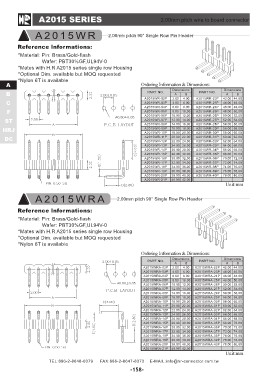

A2015 SERIES 2.00mm pitch wire to board connector

A2015WR 2.00mm pitch 90° Single Row Pin Header

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-flash
PART NO. Dimensions PART NO. Dimensions
Wafer: PBT30%GF,UL94V-0 AB AB
*Mates with H.R A2015 series single row Housing A2015WR-02P A2015WR-22P
*Optional Dim. available but MOQ requested A2015WR-03P 2.00 4.00 A2015WR-23P 42.00 44.00
*Nylon 6T is available A2015WR-04P 4.00 6.00 A2015WR-24P 44.00 46.00
A A2015WR-05P 6.00 8.00 A2015WR-25P 46.00 48.00
A2015WR-06P 8.00 10.00 A2015WR-26P 48.00 50.00
B A2015WR-07P 10.00 12.00 A2015WR-27P 50.00 52.00
A2015WR-08P 12.00 14.00 A2015WR-28P 52.00 54.00
C A2015WR-09P 14.00 16.00 A2015WR-29P 54.00 56.00
A2015WR-10P 16.00 18.00 A2015WR-30P 56.00 58.00
F A2015WR-11P 18.00 20.00 A2015WR-31P 58.00 60.00
A2015WR-12P 20.00 22.00 A2015WR-32P 60.00 62.00
ST A2015WR-13P 22.00 24.00 A2015WR-33P 62.00 64.00
A2015WR-14P 24.00 26.00 A2015WR-34P 64.00 66.00
HRJ A2015WR-15P 26.00 28.00 A2015WR-35P 66.00 68.00
A2015WR-16P 28.00 30.00 A2015WR-36P 68.00 70.00
DC A2015WR-17P 30.00 32.00 A2015WR-37P 70.00 72.00
A2015WR-18P 32.00 34.00 A2015WR-38P 72.00 74.00
A2015WR-19P 34.00 36.00 A2015WR-39P 74.00 76.00
A2015WR-20P 36.00 38.00 A2015WR-40P 76.00 78.00
A2015WR-21P 38.00 40.00 78.00 80.00
40.00 42.00
Unit:mm

A2015WRA 2.00mm pitch 90° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Mates with H.R A2015 series single row Housing
*Optional Dim. available but MOQ requested
*Nylon 6T is available

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2015WRA-02P A2015WRA-22P
A2015WRA-03P 2.00 4.00 A2015WRA-23P 42.00 44.00
A2015WRA-04P 4.00 6.00 A2015WRA-24P 44.00 46.00
A2015WRA-05P 6.00 8.00 A2015WRA-25P 46.00 48.00
A2015WRA-06P 8.00 10.00 A2015WRA-26P 48.00 50.00
A2015WRA-07P 10.00 12.00 A2015WRA-27P 50.00 52.00
A2015WRA-08P 12.00 14.00 A2015WRA-28P 52.00 54.00
A2015WRA-09P 14.00 16.00 A2015WRA-29P 54.00 56.00
A2015WRA-10P 16.00 18.00 A2015WRA-30P 56.00 58.00
A2015WRA-11P 18.00 20.00 A2015WRA-31P 58.00 60.00
A2015WRA-12P 20.00 22.00 A2015WRA-32P 60.00 62.00
A2015WRA-13P 22.00 24.00 A2015WRA-33P 62.00 64.00
A2015WRA-14P 24.00 26.00 A2015WRA-34P 64.00 66.00
A2015WRA-15P 26.00 28.00 A2015WRA-35P 66.00 68.00
A2015WRA-16P 28.00 30.00 A2015WRA-36P 68.00 70.00
A2015WRA-17P 30.00 32.00 A2015WRA-37P 70.00 72.00
A2015WRA-18P 32.00 34.00 A2015WRA-38P 72.00 74.00
A2015WRA-19P 34.00 36.00 A2015WRA-39P 74.00 76.00
A2015WRA-20P 36.00 38.00 A2015WRA-40P 76.00 78.00
A2015WRA-21P 38.00 40.00 78.00 80.00
40.00 42.00
Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-158-
