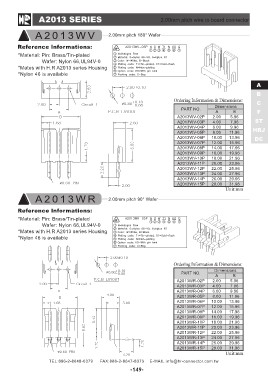

A2013 SERIES 2.00mm pitch wire to board connector
A2013WV 2.00mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2013 series Housing
*Nylon 46 is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
A2013WV-02P 2.00 5.96 ST
A2013WV-03P 4.00 7.96 HRJ
A2013WV-04P 6.00 9.96 DC
A2013WV-05P 8.00 11.96
A2013WV-06P 10.00 13.96
A2013WV-07P 12.00 15.96
A2013WV-08P 14.00 17.96
A2013WV-09P 16.00 19.96
A2013WV-10P 18.00 21.96
A2013WV-11P 20.00 23.96
A2013WV-12P 22.00 25.96
A2013WV-13P 24.00 27.96
A2013WV-14P 26.00 29.96
A2013WV-15P 28.00 31.96
Unit:mm
A2013WR 2.00mm pitch 90° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2013 series Housing
*Nylon 46 is available
Ordering Information & Dimensions:
PART NO. Dimensions
A2013WR-02P AB
2.00 5.96
A2013WR-03P 4.00 7.96
A2013WR-04P 6.00 9.96
A2013WR-05P 8.00 11.96
A2013WR-06P 10.00 13.96
A2013WR-07P 12.00 15.96
A2013WR-08P 14.00 17.96
A2013WR-09P 16.00 19.96
A2013WR-10P 18.00 21.96
A2013WR-11P 20.00 23.96
A2013WR-12P 22.00 25.96
A2013WR-13P 24.00 27.96
A2013WR-14P 26.00 29.96
A2013WR-15P 28.00 31.96
Unit:mm
