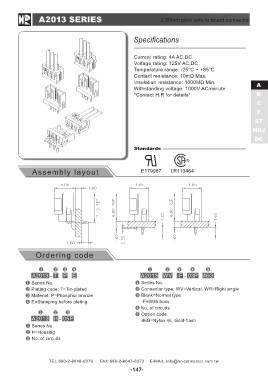

A2013 SERIES 2.00mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 4A AC,DC A
Voltage rating: 125V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1000V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987 ®

LR113464

Ordering code A2013 WV -F - 03P 46G

A2013 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. Blank=Normal type
Plating code: T=Tin-plated -F=With boss
Material: P=Phosphor bronze No. of circuits
E=Stamping before plating Option code:
46G=Nylon 46, Gold-flash
A2013 H - 05P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-147-
