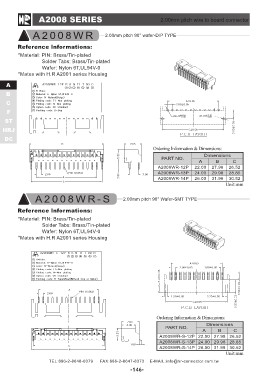

A2008 SERIES 2.00mm pitch wire to board connector

A2008WR 2.00mm pitch 90° wafer-DIP TYPE

Reference lnformations:

*Material: PIN: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A2001 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
ABC
A2008WR-12P 22.00 27.98 26.52
A2008WR-13P 24.00 29.98 28.85
A2008WR-14P 26.00 31.98 30.52

Unit:mm

A2008WR-S 2.00mm pitch 90° Wafer-SMT TYPE

Reference lnformations:

*Material: PIN: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A2001 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A2008WR-S-12P 22.00 27.98 26.52

A2008WR-S-13P 24.00 29.98 28.85

A2008WR-S-14P 26.00 31.98 30.52

Unit:mm
