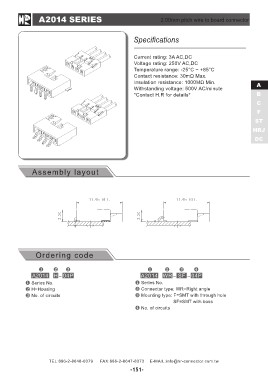

A2014 SERIES       2.00mm pitch wire to board connector
Assembly layout
                     Specifications

                     Current rating: 3A AC,DC                               A
                     Voltage rating: 250V AC,DC                             B
                     Temperature range: -25°C ~ +85°C                       C
                     Contact resistance: 30mΩ Max.                          F
                     Insulation resistance: 1000MΩ Min.                    ST
                     Withstanding voltage: 500V AC/minute                 HRJ
                     *Contact H.R for details*                             DC

 Ordering code       A2014 WR - SF - 04P

A2014 H - 04P        Series No.
                     Connector type: WR=Right angle
Series No.           Mounting type: F=SMT with through hole
H=Housing
No. of circuits                           SF=SMT with boss
                     No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
