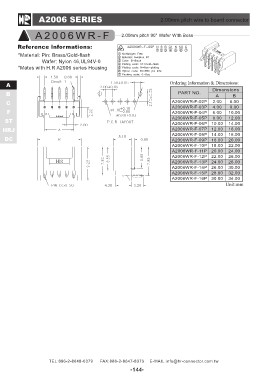

A2006 SERIES 2.00mm pitch wire to board connector

A 02 80 0 06 HWIR - F 2.00mm pitch 90° Wafer With Boss

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-flash
PART NO. Dimensions
Wafer: Nylon 46,UL94V-0
*Mates with H.R A2006 series Housing A2006WR-F-02P AB
A2006WR-F-03P 2.00 6.00
A A2006WR-F-04P 4.00 8.00
B A2006WR-F-05P 6.00 10.00
C A2006WR-F-06P 8.00 12.00
F A2006WR-F-07P 10.00 14.00
ST A2006WR-F-08P 12.00 16.00
HRJ A2006WR-F-09P 14.00 18.00
DC A2006WR-F-10P 16.00 20.00
A2006WR-F-11P 18.00 22.00
A2006WR-F-12P 20.00 24.00
A2006WR-F-13P 22.00 26.00
A2006WR-F-14P 24.00 28.00
A2006WR-F-15P 26.00 30.00
A2006WR-F-16P 28.00 32.00
30.00 34.00

Unit:mm
