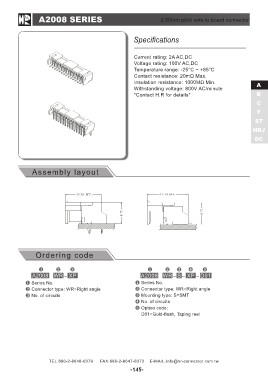

A2008 SERIES 2.00mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 2A AC,DC A
Voltage rating: 100V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 800V AC/minute HRJ
*Contact H.R for details* DC

Ordering code A2008 WR - S - XP - D01

A2008 WR - XP Series No.
Connector type: WR=Right angle
Series No. Mounting type: S=SMT
Connector type: WR=Right angle No. of circuits
No. of circuits Option code:
D01=Gold-flash, Taping reel

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-145-
