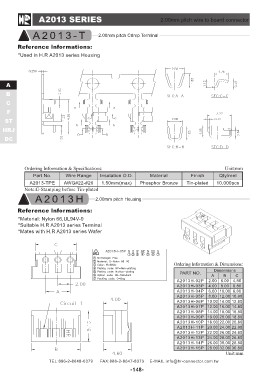

A2013 SERIES 2.00mm pitch wire to board connector
A2013-T 2.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2013 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A2013-TPE AWG#22-#26 1.50mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated
A 2 0 1 3 H 2.00mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2013 series Terminal
*Mates with H.R A2013 series Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A2013H-02P 2.00 6.00 4.80
A2013H-03P 4.00 8.00 6.80
A2013H-04P 6.00 10.00 8.80
A2013H-05P 8.00 12.00 10.80
A2013H-06P 10.00 14.00 12.80
A2013H-07P 12.00 16.00 14.80
A2013H-08P 14.00 18.00 16.80
A2013H-09P 16.00 20.00 18.80
A2013H-10P 18.00 22.00 20.80
A2013H-11P 20.00 24.00 22.80
A2013H-12P 22.00 26.00 24.80
A2013H-13P 24.00 28.00 26.80
A2013H-14P 26.00 30.00 28.80
A2013H-15P 28.00 32.00 30.80
Unit:mm
