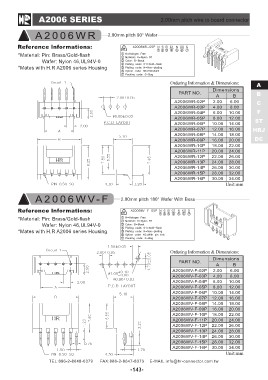

A2006 SERIES 2.00mm pitch wire to board connector

A 2 0 0 6 W R 2.00mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 46,UL94V-0

*Mates with H.R A2006 series Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
A2006WR-02P AB ST
A2006WR-03P 2.00 6.00 HRJ
A2006WR-04P 4.00 8.00 DC
A2006WR-05P 6.00 10.00
A2006WR-06P 8.00 12.00
A2006WR-07P 10.00 14.00
A2006WR-08P 12.00 16.00
A2006WR-09P 14.00 18.00
A2006WR-10P 16.00 20.00
A2006WR-11P 18.00 22.00
A2006WR-12P 20.00 24.00
A2006WR-13P 22.00 26.00
A2006WR-14P 24.00 28.00
A2006WR-15P 26.00 30.00
A2006WR-16P 28.00 32.00
30.00 34.00

Unit:mm

A2006WV-F 2.00mm pitch 180° Wafer With Boss

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 46,UL94V-0

*Mates with H.R A2006 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions

A2006WV-F-02P AB
A2006WV-F-03P 2.00 6.00
A2006WV-F-04P 4.00 8.00
A2006WV-F-05P 6.00 10.00
A2006WV-F-06P 8.00 12.00
A2006WV-F-07P 10.00 14.00
A2006WV-F-08P 12.00 16.00
A2006WV-F-09P 14.00 18.00
A2006WV-F-10P 16.00 20.00
A2006WV-F-11P 18.00 22.00
A2006WV-F-12P 20.00 24.00
A2006WV-F-13P 22.00 26.00
A2006WV-F-14P 24.00 28.00
A2006WV-F-15P 26.00 30.00
A2006WV-F-16P 28.00 32.00
30.00 34.00

Unit:mm
