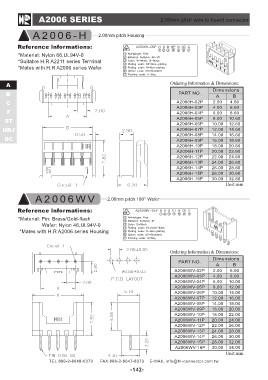

A2006 SERIES 2.00mm pitch wire to board connector

A 2 0 0 6 - H 2.00mm pitch Housing

Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2211 series Terminal
*Mates with H.R A2006 series Wafer

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST A2006H-02P AB
HRJ A2006H-03P 2.00 4.60
DC A2006H-04P 4.00 6.60
A2006H-05P 6.00 8.60
A 2 0 0 6 W V 2.00mm pitch 180° Wafer A2006H-06P 8.00 10.60
A2006H-07P 10.00 12.60
Reference lnformations: A2006H-08P 12.00 14.60
*Material: Pin: Brass/Gold-flash A2006H-09P 14.00 16.60
A2006H-10P 16.00 18.60
Wafer: Nylon 46,UL94V-0 A2006H-11P 18.00 20.60
*Mates with H.R A2006 series Housing A2006H-12P 20.00 22.60
A2006H-13P 22.00 24.60
A2006H-14P 24.00 26.60
A2006H-15P 26.00 28.60
A2006H-16P 28.00 30.60
30.00 32.60

Unit:mm

Ordering Information & Dimensions:

PART NO. Dimensions

A2006WV-02P AB
A2006WV-03P 2.00 6.00
A2006WV-04P 4.00 8.00
A2006WV-05P 6.00 10.00
A2006WV-06P 8.00 12.00
A2006WV-07P 10.00 14.00
A2006WV-08P 12.00 16.00
A2006WV-09P 14.00 18.00
A2006WV-10P 16.00 20.00
A2006WV-11P 18.00 22.00
A2006WV-12P 20.00 24.00
A2006WV-13P 22.00 26.00
A2006WV-14P 24.00 28.00
A2006WV-15P 26.00 30.00
A2006WV-16P 28.00 32.00
30.00 34.00

Unit:mm
