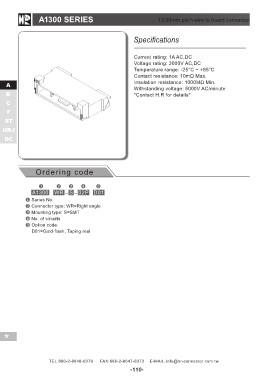

A1300 SERIES 13.00mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 3000V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 5000V AC/minute
Ordering code *Contact H.R for details*

A1300 WR - S - 02P D01

Series No.
Connector type: WR=Right angle
Mounting type: S=SMT
No. of circuits
Option code:
D01=Gold-flash, Taping reel

*
