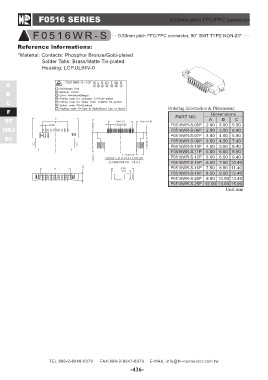

F0516 SERIES 0.50mm pitch FFC/FPC connector

F0516WR-S 0.50mm pitch FFC/FPC connector, 90° SMT TYPE NON-ZIF

Reference lnformations:

*Material: Contacts: Phosphor Bronze/Gold-plated
Solder Tabs: Brass/Matte Tin-plated
Housing: LCP,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ F0516WR-S-05P 2.00 3.00 5.90
DC
F0516WR-S-06P 2.50 3.50 6.40

F0516WR-S-07P 3.00 4.00 6.90

F0516WR-S-08P 3.50 4.50 7.40

F0516WR-S-10P 4.50 5.50 8.40

F0516WR-S-11P 5.00 6.00 8.90

F0516WR-S-12P 5.50 6.50 9.40

F0516WR-S-14P 6.50 7.50 10.40

F0516WR-S-16P 7.50 8.50 11.40

F0516WR-S-18P 8.50 9.50 12.40

F0516WR-S-20P 9.50 10.50 13.40

F0516WR-S-25P 12.00 13.00 15.90

Unit:mm
