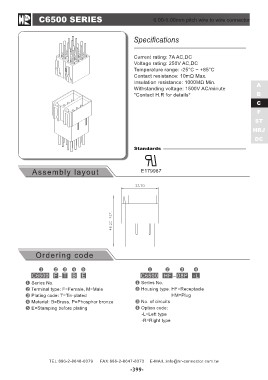

C6500 SERIES 6.00-5.00mm pitch wire to wire connector
Assembly layout
Specifications

Current rating: 7A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1500V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987

Ordering code C6500 HF - 08P -L

C6500 F - T B E Series No.
Housing type: HF=Receptacle
Series No.
Terminal type: F=Female, M=Male HM=Plug
Plating code: T=Tin-plated No. of circuits
Material: B=Brass, P=Phosphor bronze Option code:
E=Stamping before plating -L=Left type
-R=Right type

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
