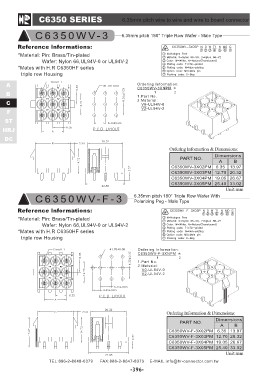

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C6350WV-3 6.35mm pitch 180° Triple Row Wafer - Male Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
triple row Housing

A Ordering Information:
B C6350WV-3XNPM ＊
C
F 12
ST
HRJ 1.Part No.
DC 2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB

C6350WV-3X02PM 6.35 13.97

C6350WV-3X03PM 12.70 20.32

C6350WV-3X04PM 19.05 26.67

C6350WV-3X05PM 25.40 33.02

Unit:mm

C6350WV-F-3 6.35mm pitch 180° Triple Row Wafer With
Polarizing Peg - Male Type
Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
triple row Housing

Ordering Information:
C6350WV-F-3XNPM ＊

12

1.Part No.
2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB

C6350WV-F-3X02PM 6.35 13.97

C6350WV-F-3X03PM 12.70 20.32

C6350WV-F-3X04PM 19.05 26.67

C6350WV-F-3X05PM 25.40 33.02

Unit:mm
