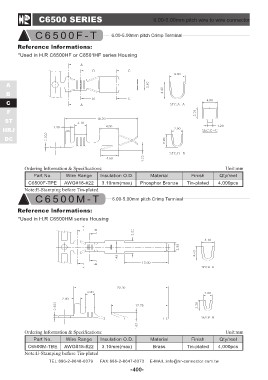

C6500 SERIES 6.00-5.00mm pitch wire to wire connector

C6500F-T 6.00-5.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C6500HF or C6501HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 4,000pcs

C6500F-TPE AWG#18-#22 3.10mm(max) Phosphor Bronze Tin-plated

Note:E-Stamping before Tin-plated

C6500M-T 6.00-5.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C6500HM series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 4,000pcs
Brass Tin-plated
C6500M-TBE AWG#18-#22 3.10mm(max)
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
