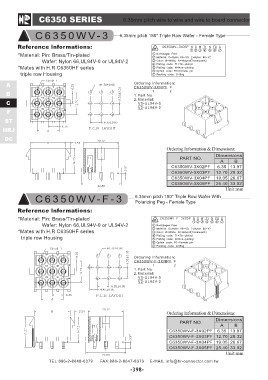

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C6350WV-3 6.35mm pitch 180° Triple Row Wafer - Female Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
triple row Housing

A Ordering Information:
C6350WV-3XNPF ＊

B 1 2
1.Part No.

2.Material:

C V0-UL94V-0
V2-UL94V-2
F

ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350WV-3X02PF
C6350WV-3X03PF 6.35 13.97
C6350WV-3X04PF 12.70 20.32
C6350WV-3X05PF 19.05 26.67
25.40 33.02

Unit:mm

C6350WV-F-3 6.35mm pitch 180° Triple Row Wafer With
Polarizing Peg - Female Type
Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
triple row Housing

Ordering Information:
C6350WV-F-3XNPF ＊

12

1.Part No.
2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB

C6350WV-F-3X02PF 6.35 13.97

C6350WV-F-3X03PF 12.70 20.32

C6350WV-F-3X04PF 19.05 26.67

C6350WV-F-3X05PF 25.40 33.02

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-398-
