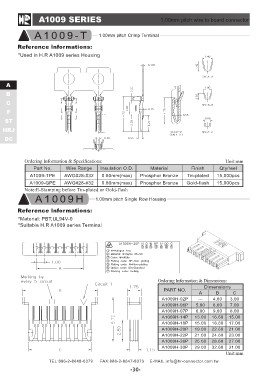

A1009 SERIES 1.00mm pitch wire to board connector
A 1 0 0 9 - T 1.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A1009 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
A1009-TPE AWG#28-#32 0.80mm(max) Phosphor Bronze Gold-flash
A1009-GPE AWG#28-#32 0.80mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash
A1009H 1.00mm pitch Single Row Housing
Reference lnformations:
*Material: PBT,UL94V-0
*Suitable H.R A1009 series Terminal
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A1009H-02P --- 4.60 3.00
A1009H-06P 5.00 8.60 7.00
A1009H-07P 6.00 9.60 8.00
A1009H-14P 13.00 16.60 15.00
A1009H-16P 15.00 18.60 17.00
A1009H-20P 19.00 22.60 21.00
A1009H-22P 21.00 24.60 23.00
A1009H-26P 25.00 28.60 27.00
A1009H-30P 29.00 32.60 31.00
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-30-
