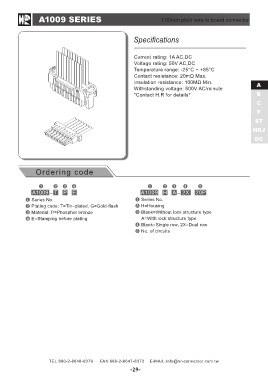

A1009 SERIES                              1.00mm pitch wire to board connector

                                          Specifications

                                          Current rating: 1A AC,DC                A
                                          Voltage rating: 50V AC,DC               B
                                          Temperature range: -25°C ~ +85°C        C
                                          Contact resistance: 20mΩ Max.           F
                                          Insulation resistance: 100MΩ Min.      ST
                                          Withstanding voltage: 500V AC/minute  HRJ
                                          *Contact H.R for details*              DC

 Ordering code                            A1009 H A - 2X 20P

A1009 - T P E                             Series No.
                                          H=Housing
Series No.                                Blank=Without lock structure type
Plating code: T=Tin–plated, G=Gold-flash  A=With lock structure type
Material: P=Phosphor bronze               Blank=Single row, 2X=Dual row
E=Stamping before plating                 No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
