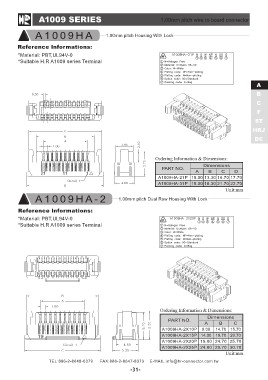

A1009 SERIES 1.00mm pitch wire to board connector

A1009HA 1.00mm pitch Housing With Lock

Reference lnformations:

*Material: PBT,UL94V-0
*Suitable H.R A1009 series Terminal

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
ABCD

A1009HA-21P 10.00 13.30 16.70 17.70

A1009HA-31P 15.00 18.30 21.70 22.70

Unit:mm

A1009HA-2 1.00mm pitch Dual Row Housing With Lock

Reference lnformations:
*Material: PBT,UL94V-0
*Suitable H.R A1009 series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A1009HA-2X10P 9.00 14.70 15.70

A1009HA-2X15P 14.00 19.70 20.70

A1009HA-2X20P 19.00 24.70 25.70

A1009HA-2X25P 24.00 29.70 30.70

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-31-
