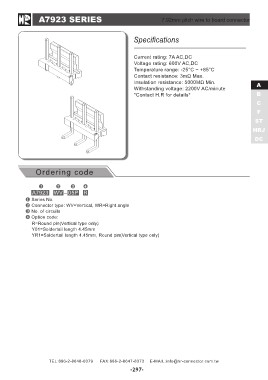

A7923 SERIES 7.92mm pitch wire to board connector

Specifications

Current rating: 7A AC,DC A
Voltage rating: 600V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 3mΩ Max. F
Insulation resistance: 5000MΩ Min. ST
Withstanding voltage: 2200V AC/minute HRJ
*Contact H.R for details* DC

Ordering code

A7923 WV - 05P R

Series No.
Connector type: WV=Vertical, WR=Right angle
No. of circuits
Option code:
R=Round pin(Vertical type only)
Y01=Soldertail length 4.45mm
YR1=Soldertail length 4.45mm, Round pin(Vertical type only)

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-297-
