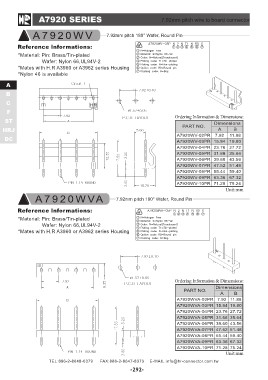

A7920 SERIES 7.92mm pitch wire to board connector

AA70982000WH IV 7.92mm pitch 180° Wafer, Round Pin

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing
*Nylon 46 is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A7920WV-02PR 7.92 11.88
DC
A7920WV-03PR 15.84 19.80

A7920WV-04PR 23.76 27.72

A7920WV-05PR 31.68 35.64

A7920WV-06PR 39.60 43.56

A7920WV-07PR 47.52 51.48

A7920WV-08PR 55.44 59.40

A7920WV-09PR 63.36 67.32

A7920WV-10PR 71.28 75.24

Unit:mm

A 7 9 2 0 W VA 7.92mm pitch 180° Wafer, Round Pin

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A7920WVA-02PR 7.92 11.88

A7920WVA-03PR 15.84 19.80

A7920WVA-04PR 23.76 27.72

A7920WVA-05PR 31.68 35.64

A7920WVA-06PR 39.60 43.56

A7920WVA-07PR 47.52 51.48

A7920WVA-08PR 55.44 59.40

A7920WVA-09PR 63.36 67.32

A7920WVA-10PR 71.28 75.24

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-292-
