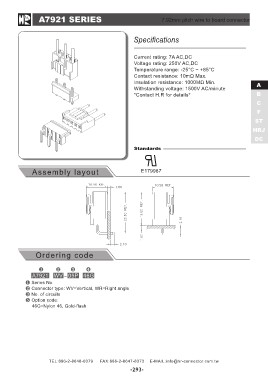

A7921 SERIES 7.92mm pitch wire to board connector
Assembly layout
Specifications
Current rating: 7A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1500V AC/minute HRJ
*Contact H.R for details* DC
Standards
E179987
Ordering code
A7921 WV - 05P 46G
Series No.
Connector type: WV=Vertical, WR=Right angle
No. of circuits
Option code:
46G=Nylon 46, Gold-flash
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
