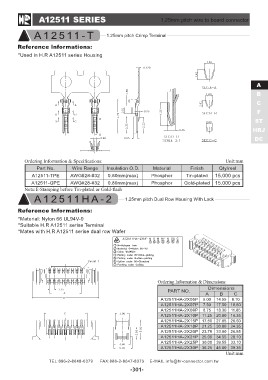

A12511 SERIES 1.25mm pitch wire to board connector

AA 10 28 50 101H-IT 1.25mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A12511 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

A12511-TPE AWG#28-#32 0.80mm(max) Phosphor Tin-plated 15,000 pcs

A12511-GPE AWG#28-#32 0.80mm(max) Phosphor Gold-plated 15,000 pcs
Note:E-Stamping before Tin-plated or Gold-flash

AA 10 28 50 101HHI A - 2 1.25mm pitch Dual Row Housing With Lock

Reference lnformations:

*Material: Nylon 66 UL94V-0
*Suitable H.R A12511 serise Terminal
*Mates with H.R A12511 serise dual row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A12511HA-2X05P 5.00 14.55 8.10

A12511HA-2X07P 7.50 17.50 10.60

A12511HA-2X08P 8.75 18.30 11.85

A12511HA-2X10P 11.25 20.80 14.35

A12511HA-2X15P 17.50 27.05 20.60

A12511HA-2X18P 21.25 30.80 24.35

A12511HA-2X20P 23.75 33.00 26.85

A12511HA-2X21P 25.00 34.55 28.10

A12511HA-2X25P 30.00 39.55 33.10

A12511HA-2X30P 36.25 45.80 39.35

Unit:mm
