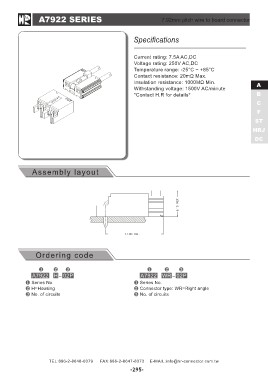

A7922 SERIES 7.92mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 7.5A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1500V AC/minute HRJ
*Contact H.R for details* DC

Ordering code A7922 WR - 02P

A7922 H - 02P Series No.
Connector type: WR=Right angle
Series No. No. of circuits
H=Housing
No. of circuits
