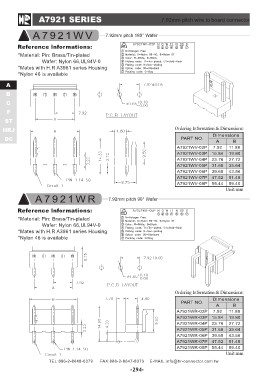

A7921 SERIES 7.92mm pitch wire to board connector

A7921WV 7.92mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A3961 series Housing
*Nylon 46 is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ
DC

A7921WV-02P 7.92 11.88

A7921WV-03P 15.84 19.80

A7921WV-04P 23.76 27.72

A7921WV-05P 31.68 35.64

A7921WV-06P 39.60 43.56

A7921WV-07P 47.52 51.48

A7921WV-08P 55.44 59.40

Unit:mm

A7921WR 7.92mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A3961 series Housing
*Nylon 46 is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A7921WR-02P 7.92 11.88

A7921WR-03P 15.84 19.80

A7921WR-04P 23.76 27.72

A7921WR-05P 31.68 35.64

A7921WR-06P 39.60 43.56

A7921WR-07P 47.52 51.48

A7921WR-08P 55.44 59.40

Unit:mm
