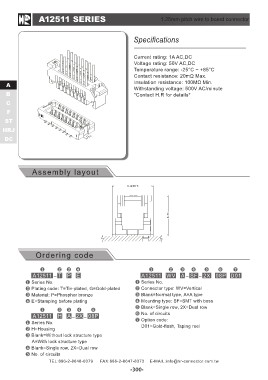

A12511 SERIES 1.25mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 50V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 500V AC/minute
*Contact H.R for details*

Assembly layout

Ordering code

A12511 - T P E A12511 WV A - SF - 2X 08P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-plated Connector type: WV=Vertical
Material: P=Phosphor bronze Blank=Normal type, A=A type
E=Stamping before plating Mounting type: SF=SMT with boss
Blank=Single row, 2X=Dual row

A12511 H A - 2X - 08P No. of circuits
Option code:
Series No. D01=Gold-flash, Taping reel
H=Housing

Blank=Without lock structure type

A=With lock structure type

Blank=Single row, 2X=Dual row
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-300-
