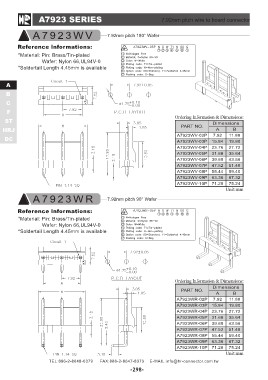

A7923 SERIES 7.92mm pitch wire to board connector

A7923WV 7.92mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Soldertail Length 4.45mm is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A7923WV-02P 7.92 11.88
DC
A7923WV-03P 15.84 19.80

A7923WV-04P 23.76 27.72

A7923WV-05P 31.68 35.64

A7923WV-06P 39.60 43.56

A7923WV-07P 47.52 51.48

A7923WV-08P 55.44 59.40

A7923WV-09P 63.36 67.32

A7923WV-10P 71.28 75.24

Unit:mm

A7923WR 7.92mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Soldertail Length 4.45mm is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A7923WR-02P 7.92 11.88

A7923WR-03P 15.84 19.80

A7923WR-04P 23.76 27.72

A7923WR-05P 31.68 35.64

A7923WR-06P 39.60 43.56

A7923WR-07P 47.52 51.48

A7923WR-08P 55.44 59.40

A7923WR-09P 63.36 67.32

A7923WR-10P 71.28 75.24

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-298-
