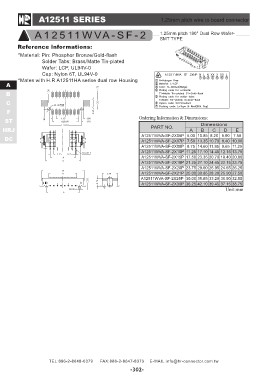

A12511 SERIES 1.25mm pitch wire to board connector

A 10 28 50 101HWI V A - S F - 2 1.25mm pitch 180° Dual Row Wafer-
SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-plated
Wafer: LCP, UL94V-0
Cap: Nylon 6T, UL94V-0

*Mates with H.R A12511HA serise dual row Housing
A

B

C

F Ordering Information & Dimensions:
ST
HRJ PART NO. Dimensions
DC ABCDE

A12511WVA-SF-2X05P 5.00 10.85 8.20 5.90 7.50

A12511WVA-SF-2X07P 7.50 13.35 10.70 8.40 10.00

A12511WVA-SF-2X08P 8.75 14.60 11.95 9.65 11.25

A12511WVA-SF-2X10P 11.25 17.10 14.45 12.15 13.75

A12511WVA-SF-2X15P 17.50 23.35 20.70 18.40 20.00

A12511WVA-SF-2X18P 21.25 27.10 24.45 22.15 23.75

A12511WVA-SF-2X20P 23.75 29.60 26.95 24.65 26.25

A12511WVA-SF-2X21P 25.00 30.85 28.20 25.90 27.50

A12511WVA-SF-2X25P 30.00 35.85 33.20 30.90 32.50

A12511WVA-SF-2X30P 36.25 42.10 39.45 37.15 38.75

Unit:mm
