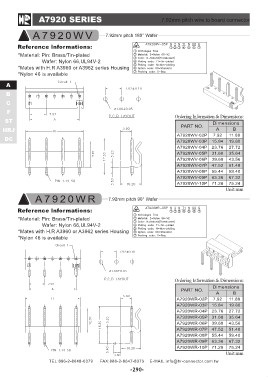

A7920 SERIES 7.92mm pitch wire to board connector

A7920WV 7.92mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing
*Nylon 46 is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A7920WV-02P 7.92 11.88
DC
A7920WV-03P 15.84 19.80

A7920WV-04P 23.76 27.72

A7920WV-05P 31.68 35.64

A7920WV-06P 39.60 43.56

A7920WV-07P 47.52 51.48

A7920WV-08P 55.44 59.40

A7920WV-09P 63.36 67.32

A7920WV-10P 71.28 75.24

Unit:mm

A7920WR 7.92mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing
*Nylon 46 is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A7920WR-02P 7.92 11.88

A7920WR-03P 15.84 19.80

A7920WR-04P 23.76 27.72

A7920WR-05P 31.68 35.64

A7920WR-06P 39.60 43.56

A7920WR-07P 47.52 51.48

A7920WR-08P 55.44 59.40

A7920WR-09P 63.36 67.32

A7920WR-10P 71.28 75.24

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
